- NEW UV SYSTEM
- DIGITAL INVERTER Curing machine |
 |
|
| Model |
IUT-5000M |
|
| Type |
PLC program |
| Power |
5KW |
| Use |
Intermittent, Rotary, Printing Machinery |
| Power Supply |
200~ 220V/380V,
50Hz/60Hz |
| Lamp Name |
Mercury,Mtal Halide Lamp |
| Lamp Size |
250*350, 300 * 400 Other selectable |
| Reflector |
Cold Mirror
/ Hot Mirror |
| Cooling |
Air Cooling |
| Monitor |

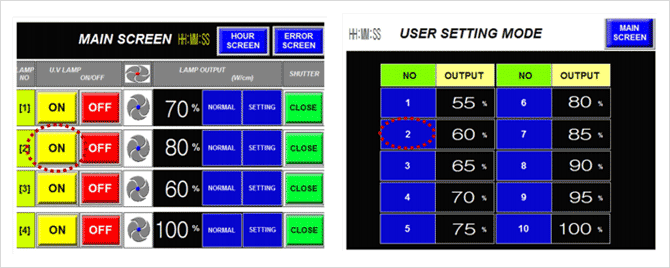

Touch screen |
|
|
|
● Inverter system that was developed our company can be used for various printing machine included
label printing etc.
● Its average output of power is 1.6kw-5kw as compared to traditional analog type and 10-step detailed output
can be adjusted, thus the efficiency will be maximized
● Possible to change the size of lamp, depending on the printing paper width
▶ Protection of Lamp Overheating
- As overheating happens due to cooling problem of UV Lamp, It has an automatic lamp off ability built - in.
- Auto Shutter function(Built lamp turns off automatically when the problem occurred)
- It can automatically control the output of the UV Lamp to adjust to the velocity of the printing machine.
(Automatic control output 10 steps)
- Minimize installation space

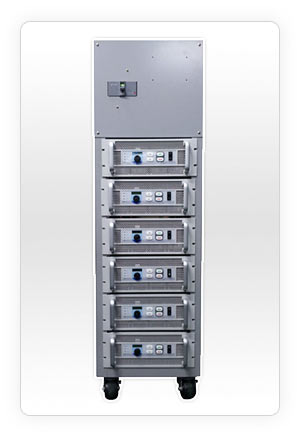

▶ Machine size (Width*Depth*Height)
- 5 unit : 390mm * 680mm * 1086mm
- 6 unit : 390mm * 680mm * 1228mm
- 7 unit : 390mm * 680mm * 1370mm
- 8 unit : 390mm * 680mm * 1512mm
- 9 unit : 390mm * 680mm * 1654mm |
|
|
 |
|
|
Magnetic |
Electronic |
|
| Control Method |
Analog |
Digital |
| Efficiency |
Poor Efficiency (<90%) |
High Efficiency (>90%) |
| Lamp Protection |
Limited(No) |
Variety |
| Stability of Luminous Source |
Influence of Input Power, Flickering Phenomenon. |
No Influence of Input Power, Elimination Flicker |
| Input Stability |
Affected by input power |
Not affected by input power |
| Lamp Life |
Relatively short to Electronic |
Relatively long to Magnetic |
| Control Function |
Limited |
constant power |
| Hardware |
Large(Big) and heavy |
Compact(Small) and light |
| Applications |
Ballast Hum generation by electrical power
vibration between chock coil and iron core |
Fan noise level for cooling |
|
|
|
|
|
|
|
|
|
|
|
