| High Pressure Mercury Lamp has been developed for photochemical reaction plant. Mercury vapor pressure is 1-10 atm. during the lighting hour. It has a broad line spectrum of UV. High-pressure mercury lamp radiation can produce a strong 310nm, 365nm, 410nm wavelength features such as ultraviolet (UV), visible and infrared light (IR). This lamp, as a luminous source for UV irradiation, has been applied to various fields such as ultraviolet curing ink, ultraviolet curing paint, and UV curing photosensitive adhesive. |
|
|
|
| |
 |
|
 |
| This lamp emits constant UV light in the range of UV-A (320~420nm) by projecting Metal Halide Salt instead of mercury. Its generation efficiency of ultraviolet rays and infrared rays is high. It is very effective in the use of screen printing especially and other printing which involves pigments with a thick membrane. |
|
|
|
|
 |
|
 |
Features :
● Lamp durability maximize by Low Frequency PULSE-DC
● Accurate and reliable way with 32bit DSP control

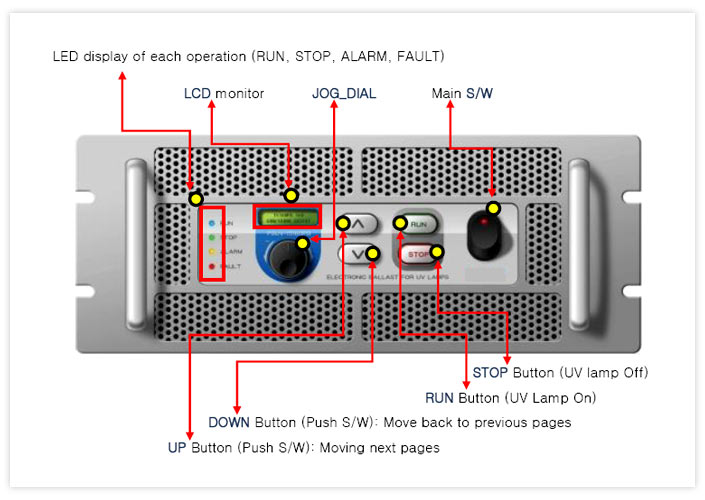

● All situation and movement status of the equipment display by the front LCD
● Installed Safety Circuit : Overvoltage, Over-current, Low-voltage, Inverter Overheating, Lamp Overheating Prevention and so on. |
|
|
Advantages of Electronic Inverter :
● Power panels size reduction and weight loss (installation area reduction)
● nergy consumption reduction by efficiency and improving power factor (electricity use reduction)
● Lamp replacement costs reduction (durability 20% increase)
|
|
|
|
|
|
|
